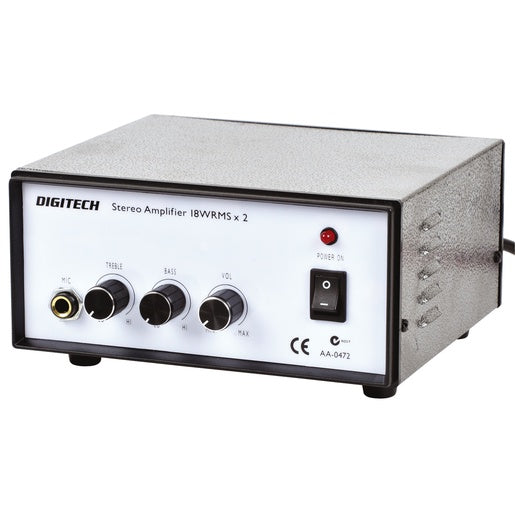

Digitech Low Cost Mains Powered Stereo Amplifier

This is a simpl, fairly bullet-proof 18W Channel Transistor Amp and it's surprisingly loud! It's ideal as a small office or workshop PA amp in churche, community halls, etc. Protected from accidental speaker-wire shorts, it will simply shut down and reset after it has cooled down. It is also housed in a sturdy metal cabinet, designed to withstand the typical knocks and scratches.
The front panel featuers a microphone input, bass and treble control, as well as a master volume control. Whilst on the rear panel are left & right push-down wire entry speaker terminals and a single right/left set of line level RCA sockets.

Low cost
Mains powered
2x 18W RMS channels
Microphone input
Bass, treble & volume controls
Rugged design and construction
Specifications:
Power:    240V AC 50Hz 150mA
Output:    18W per Ch RMS @ 4Ω
Response:    50-18kHz 3dB
Total Harmonic Distortion :    0.08% @ 1W
S/N:    106dB @ 15W
94dB @ 1W
Operating Temperature:    0-50°C
Microphone Input:    600mV @ 47k
Dimensions:    170x77x157mm
